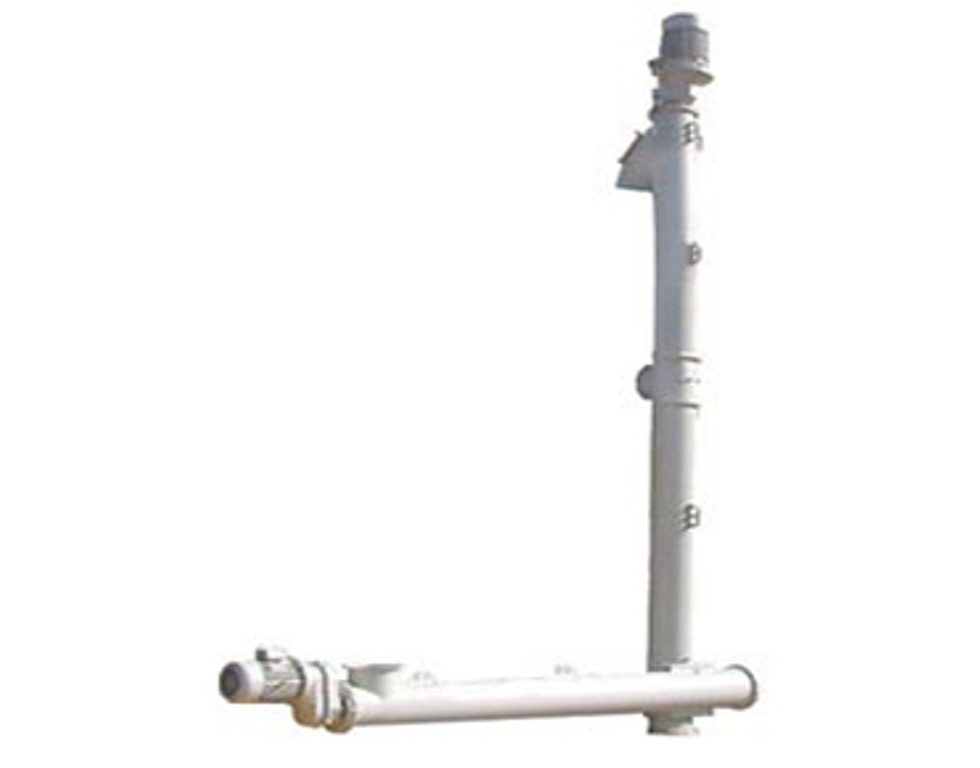

垂直螺旋输送机

垂直螺旋输送机产品概述

垂直螺旋输送机旋转轴上焊的螺旋叶片，叶片的面型根据输送垂直螺旋输送机物料的不同有实体面型、带式面型、叶片面型等型式。
垂直螺旋输送机的螺旋轴在物料运动方向的终端有止推轴承以随物料给螺旋的轴向反力，在机长较长时，应加中间吊挂轴承。
Product overview
Vertical screw conveyor on the axis of rotation welding spiral blade, blade surface type according to different transport of vertical screw conveyor materials have a solid surface, belt surface, such as blade surface type.
Vertical screw conveyor screw axis of the terminal at the direction of material movement have thrust bearings to the material to spiral axial reaction force, the captain is longer, should add hanging bearing in the middle.

垂直螺旋输送机的分类

主要有LSY、LS、GX、WLS、LC型系列螺旋输送机;MS、MC、MZ、MSF、MSD型系列埋刮板输送机，FU型系列链式输送机；TD、TH、NE、型等系列；DSZ、YSJ型粉尘加湿搅拌机系列；HXF型星形卸灰阀（XF物料旋阀）、DLSF系列电动双层联锁阀、ZF型闸板阀等阀门系列；卸船设备以及污水污泥处理设备;不锈钢螺旋输送机等。
因用途、场合的不同，螺旋输送机械又有许多改型产品，如用于垂直输送的LC、LS-Y 型：高炉系统，专门用于消化石灰的XP 型及单、双管螺旋给料机等，还有无轴螺旋输送机、双螺旋输送机、螺旋式输送机等等。
Classfication
Mainly has the newly-modified LSY, LS type, GX, WLS, LC series screw conveyor;MS, MC, MZ, MSF, MSD type series buried scraper conveyor, FU chain conveyor type series;TD type, TH, NE, etc;DSZ, YSJ humidifying dust mixer series;Type HXF star discharging valve material spin valve (XF), DLSF series electric double layer interlock valve, ZF type gate valve, valve series;Discharging equipment and sewage sludge treatment equipment;Stainless steel screw conveyor and so on.
For use, the different occasions, screw conveying machinery and there are many varied products, such as for vertical conveying of LC, LS - Y type: the blast furnace system, specifically for the digestion of lime XP type, single and double pipe screw feeder, and shaftless screw conveyor, double spiral conveyor, screw conveyor and so on.

垂直螺旋输送机的特点

1.承载能力大、安全可靠。
2.适应性强、安装维修方便、寿命长。
3.整机体积小、转速高、确保快速均匀输送。
4.出料端设有清扫装置，整机噪声低、适应性强，进出料口位置布置灵活。
5.密封性好、外壳采用无缝钢管制作，端部采用法兰互相连接成一体，刚性好。
Characteristic
1. The large bearing capacity, safe and reliable.
2. Strong adaptability, easy installation and maintenance, long service life.
3. The machine is small in size, high speed, ensure rapid delivery uniformity.
4. The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.
5. Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.
垂直螺旋输送机的工作原理

是利用旋转的螺旋将被输送的物料沿固定的机壳内推移而进行输送工作，头部及尾部轴承移至壳体外，吊轴承采用滑动轴承设有防尘密封装置，轴瓦一般采用粉末冶金，输送水泥采用毛毡轴瓦，吊轴和螺旋轴采用滑块连接。
Working principle
Its the use of rotating screw materials will be transported along a fixed conveying work inside the casing goes on, the head and tail bearing moved to the outside shell, suspension bearing adopts the sliding bearing the dustproof sealing device, commonly used bearing shell powder metallurgy, transport cement adopts the felt pad, hoisting shaft and propeller shaft connected by sliding block.

垂直螺旋输送机的安装

        垂直式螺旋输送器上部有轴承支承,大多数采用单列圆锥滚子轴承两个,安装此轴承时,不可装反,以免出现问题。
　　单列圆锥滚子轴承与向心推力球轴承相似,但承载能力更大,内外圈可分离,间隙容易调整。常用于斜齿轮轴、蜗轮减速器轴、机床主轴等。圆锥滚子轴承主要适用于承受以径向载荷为主的径向和轴向联合载荷，而大锥角圆锥滚子轴承可以用于承受轴向载荷为主的径轴向联合载荷。此种轴承为分离型轴承,其内圈(含圆锥滚子和保持架)和外圆可以分别安装。在安装和使用过程中可以调整轴承的径向游隙和轴向游隙,也可以预过盈安装.
　　单列圆锥滚子轴承3000型,此种轴承能够限制轴或外壳一个方向的轴向位移。承受一个方向的轴向载荷。在径向载荷作用下会产生附加轴向力,因此,一般在轴的两个支承中,轴承的外圈和内圈的同名端面相对安装。如单独使用,其外加轴向力必须大于附加轴向力。
　　垂直式螺旋输送机上部两单列圆锥滚子轴承在安装时,要注意,内圈在上面安装垂直小锥面向上,在下面安装垂直小锥面向下,两单列锥滚子轴承相对安装,这样就可以支承住实体螺旋面不向下位移,保证生产的正常运转
Installation
Vertical spiral conveyor its upper bearing, most use two single row tapered roller bearing, install the bearings, not installed backwards, in order to avoid problems.
Single row circular cone roller bearings and angular contact ball bearings are similar, but the carrying capacity of a larger, inside and outside the circle of separable, easy to adjust the clearance.Often used for helical gear shaft, worm gear reducer shaft, spindle, etc.Tapered roller bearing mainly applies to afford to mainly consisting of radial load and axial load, and the big cone Angle tapered roller bearing can be used to carry axial load is given priority to the diameter of the axial load.These bearings for separating type bearing, which circles (including tapered roller and cage) and outer circle can be installed separately.In the process of installation and use can adjust bearing radial clearance and axial clearance and preloaded mounting can be made.
Single row tapered roller bearing type 3000, these bearings can limit shaft or housing in one direction axial displacement.Carry axial load in one direction.Under the effect of radial load will produce additional axial force, therefore, generally in two supporting shaft, bearing outer ring and inner ring end face relative to the installation of the same name.If used alone, the additional axial force must be greater than the additional axial force.
Upper vertical screw conveyor two single row circular cone roller bearings in the installation, pay attention to, the inner ring in the above installed vertically upward, small cone installed vertically below small cone downward, relative to install two single row taper roller bearings, so that you can support living entity helicoid downward displacement, ensure the normal operation of production

垂直螺旋输送机的使用和维护

垂直螺旋输送机的工作条件较恶劣，各个轴承都处于粉尘包围之中，导热条件不好，因此在这样的工作条件下合理操作、保养尤为重要，故要求如下：
　　螺旋机应无负荷起动，待起动正常后向进口投料。
　　给料时应均匀限额，给料量要合适以免使机器过载。
　　停车前，应停止给料，使机壳内物料输送完后方可停止。
　　输送物料内不得混入坚硬大块，避免螺旋卡死损坏输送机。
　　在使用中应检查各部件的联结禁锢件是否松动，动力是否发热，声音是否正常，一旦有异常，立即停车纠正。
　　调速电机起动、运行、停止。可以全压起动亦可降压起动，电动机起动后合上控制箱电源开关，逐渐调节速度旋钮，增加激磁电流，离合器转速逐渐加至需要运行转速。停车时把调速旋纽调到零位，再停止拖动电机。
　　各加油部位应定期加油。
Usage and maintenance
Vertical screw conveyor working conditions are bad, each bearing are surrounded by dust, thermal condition is bad, so in this work under the condition of reasonable operation and maintenance is particularly important, so the requirement is as follows:
Screw machine should no-load starting, starting to import after the normal feeding.
Feeding should be uniform limit, to recycle to proper lest make machine overload.
Before parking, should stop feeding, make the conveying of rear can stop inside the casing.
No mixed with solid chunk in the conveying material and avoid the damage of spiral stuck conveyor.
Imprisoned in use of the various components should check the connection is loose, whether fever, voice is normal, once there are abnormal, stop immediately corrected.
