输送机

板链输送机

板链输送机

【产品类别】输送机

【性能评测】★★★★★

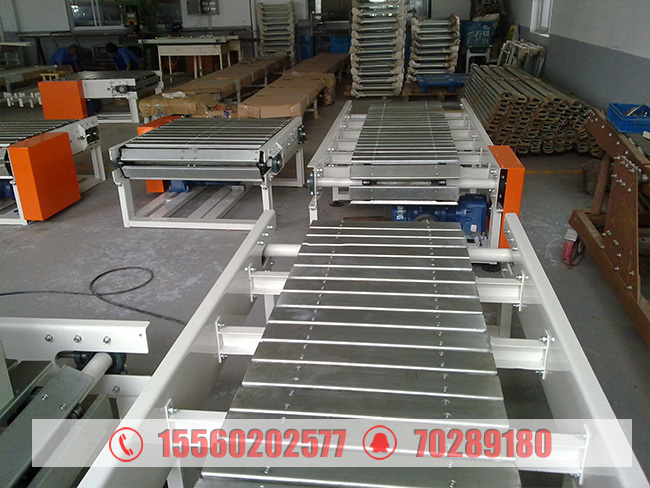

【产品简介】板链输送机 板链输送机用途广泛,以标准顶板链为承载面,由马达减速机为动力传动,运行在专用导轨中。 板链输送机主要结构由头部驱动装置、尾轮装置、拉紧装置、链板及机架等

特点

平顶链结构十分简单,仅一块两侧带铰圈的链板与一要销轴。两侧铰圈的一侧与销轴固定联结,称为固定铰圈。另一侧处在里档的铰圈与销轴滚动联结,称为活动铰圈。活动铰圈与与销轴构成了平顶链的铰链。因平顶链使用时经常要与液态物质接触,所以链板材料用不锈钢制造居多,当然也有用工程塑料来制造的。钢制平顶链的铰圈是卷制而成的,所以铰圈是有缝的,圆度不易保证。载荷大时还会被拉开,是一处薄弱环节。随着工装塑料的发展,工程塑料平顶链也忆开发出来。由于工程塑料的平顶链链板是浇铸成型的,所以链板的结构可以按需要采用较为复杂的形状。因为链板上都有加强肋,所以能提高链条的强度。双弯加强肋铰郑式直行平顶链的强度并不比钢制的简单铰卷式平顶链低。
Features:
Flat-top chain structure is very simple, only on both sides of a piece with hinged ring chain plate with a pin.On both sides of the hinge on one side of the circle and the pin shaft fixed connection, known as the fixed hinge.In the other side is archives circle of hinged with the rolling pin shaft coupling, called active hinge.Activity hinge circle and form the hinge of the flat chain with pin.Because of flat chain when using often want to contact with the liquid material, so the chain plate made of stainless steel material, of course also useful to manufacturing engineering plastics.Steel flat chain circle of hinge is developed, and so the hinge circle is a seam, roundness is not easy to guarantee.The load will be opened and is a weak link.With the development of plastic tooling, engineering plastic flat chain also have developed.As a result of the engineering plastic flat chain chain plate is cast molding, so the structure of the chain plate can according to need to adopt more complex shapes.Because the chain board has a stiffening rib, so can improve the strength of the chain.Double curved stiffened hinge zheng went flat top the strength of the chain is not lower than the simple hinge volume type flat steel chain.
应用
平顶链具有结构简单、重量轻、制造和维修方便的优点。平顶链的顶板为输送物料提供了一定宽度的水平承载面。顶板宽度按输送物料的要求确定。链条与链轮啮合时,铰圈本身就是与链轮啮合的部位。因平行排列的顶板链两侧间隙小,所以,只能作直线移动。就用平顶链时正确定装十分重要。广泛应用于直行板链输送机的设计。多条并列的链板输送机可用采用网带输送机来代替。
板链输送机适用于形状不规则物品的重载输送。链条选用空心大辊子带附件链条,在两侧同步链条的附件上用板状构件连接使输送方向形成连续的平板,因而运行平稳。该机与链式或辊筒输送机配合使用可实现转角输送。
Applications:
Flat-top chain has a simple structure, the advantages of light weight, easy to manufacture and maintenance.Flat-top chain the roof for conveying material width of the level of the bearing surfaces.Top plate width is determined according to the requirement of the conveying material.Chain and sprocket meshing, hinged ring itself is one of the sprocket meshing area.For parallel arrangement of roof chain side clearance is small, so, can only make straight line movement.With flat-top chain is determined when the loading is very important.Widely used in straight andante chain conveyor design.Multiple coordinate chain conveyor mesh belt conveyor is used to replace available.
Plate chain conveyor is suitable for the irregular shape goods overload transportation.Chain choose hollow roller chain with attachments, with plate component synchronous chain accessories on both sides the conveying direction connection form the continuous tablet, thus smooth operation.This machine used with chain or roller conveyor can realize Angle conveyor.
材质
碳钢、不锈钢、热塑链,根据产品的需要可选取不同宽度、不同形状的顶板来完成直线、转弯、升降等要求。
The material
Carbon steel, stainless steel, thermoplastic chain, according to the need of the product can choose different width, different shapes of roof to complete a straight line, turning and lifting requirements.
分类
因控制方式的不同,可分为连续运行式和间歇运行式。
classification
Because of the different methods of control, can be divided into continuous operation and intermittent operation.

主要技术参数:
链条节距:25.4mm~203.2mm
板链输送机宽度:200mm~800mm
(宽度超过800mm时,可使用双板链结构)
输送速度:0.4m~15m/Min
输送物品最大重量:800kg/m2
金属板链工作环境温度:-20℃~+120℃
The main technical parameters:
The chain pitch: 25.4 mm to 203.2 mm
Plate chain conveyor width: 200 mm to 800 mm
When more than 800 mm (width, can use the double plate chain structure)
Conveyor speed: 0.4 m to 15 m/Min
Delivery goods maximum weight: 800 kg/m2
Metal plate chain working environment temperature: - 20 ℃ ~ + 120 ℃

定制板链输送机请请确认以下技术参数:
1.输送物料的单件重量,物料的规格大小。
2.使用环境,环境温度。
3.输送速度(米/分钟)。
4.安装场地要求,布置形式。
5.是否需要调速。
 我公司可根据客户要求重新设计。
Custom plate chain conveyor, please confirm the following parameters:
1. Conveying material piece weight, material of the specifications of the size.
2. Using the environment, the environment temperature.
3. Delivery speed (m/min).
4. Installation site requirement, decorate a form.
5. Whether you need speed.
Our company can according to customer requirements to design.
