产品介绍
GX螺旋输送机适宜输送颗粒度较小和粉状物料，不适宜输送易变质、黏性和易结块的物料。工作温度为﹣20℃—50℃。输送角度不大于20°，输送物料温 度为200°以下，机长为3-70m。GX螺旋输送机是原机械部定型产品，整机可靠性高，寿命长，适应性好，安装维修方便。GX螺旋输送机广泛应用于建材、化工、电力、冶金、煤炭、粮食等行业，使用于水平或者倾斜输送粉状、粒状和小块物料，如煤灰、煤渣、水泥、粮食等物料。
Product overview
GX screw conveyor is suitable for conveying the smaller the particle size and powder material, not suitable for transporting perishable materials, sticky and agglomerate.Working temperature is 20 ℃ -- - 50 ℃.Conveying material conveying Angle is not more than 20 °, the temperature is below 200 ° of the captain for 3-70 - m.GX screw conveyor is the original prize of finalize the design product, the whole machine has high reliability, long life, good adaptability, easy installation and maintenance.GX screw conveyor is widely used in building material, chemical industry, electric power, metallurgy, coal, food and other industries, used in horizontal or oblique conveying powder, granular and small piece of material, such as fly ash, coal, cement, food and other materials.
Product overview
GX screw conveyor is suitable for conveying the smaller the particle size and powder material, not suitable for transporting perishable materials, sticky and agglomerate.Working temperature is 20 ℃ -- - 50 ℃.Conveying material conveying Angle is not more than 20 °, the temperature is below 200 ° of the captain for 3-70 - m.GX screw conveyor is the original prize of finalize the design product, the whole machine has high reliability, long life, good adaptability, easy installation and maintenance.GX screw conveyor is widely used in building material, chemical industry, electric power, metallurgy, coal, food and other industries, used in horizontal or oblique conveying powder, granular and small piece of material, such as fly ash, coal, cement, food and other materials.
安装方法
GX螺旋输送机安装结构可以分为头节、中间节、以及尾节三部分。这三部分是根据用户需求来设定长度，从而组成一台完整GX螺旋输送机。如果水平固定在地面，地面需预留地脚和膨胀丝孔，用以固定。有角度输送的情况下，一定要事先设定相应支撑。
GX螺旋输送机按驱动装置的方法不同也分为两种：右装和左装。右装-站在电机尾部分向前看，减速机低速轴在电机的右侧；左装—站在电机尾部向前看，减速机低速轴在电机的左侧。
Ways of Installation
GX screw conveyor installation structure can be divided into the head section, the middle section, and the tail section of three parts.The three part is set length according to user requirements, thus constituting a complete GX screw conveyor.If the level is fixed on the ground, the ground should be set aside the anchor hole and expansion silk, fixed.With Angle under the condition of delivery, must be set in advance corresponding support.
The drive device of GX screw conveyor according to the different is divided into two kinds: right and left.Right - stand in the tail section look forward, reducer shaft on the right side of the motor at low speed;Left - stand to look ahead at the end of the motor, to the left side of the reducer shaft in the motor at low speed.
Ways of Installation
GX screw conveyor installation structure can be divided into the head section, the middle section, and the tail section of three parts.The three part is set length according to user requirements, thus constituting a complete GX screw conveyor.If the level is fixed on the ground, the ground should be set aside the anchor hole and expansion silk, fixed.With Angle under the condition of delivery, must be set in advance corresponding support.
The drive device of GX screw conveyor according to the different is divided into two kinds: right and left.Right - stand in the tail section look forward, reducer shaft on the right side of the motor at low speed;Left - stand to look ahead at the end of the motor, to the left side of the reducer shaft in the motor at low speed.

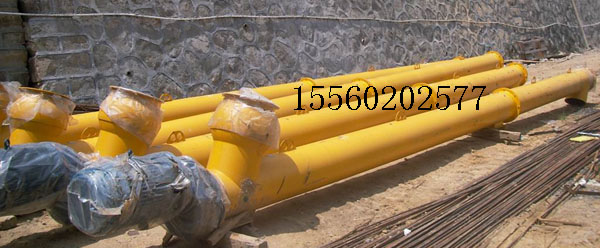

管式螺旋输送机图片
Photos

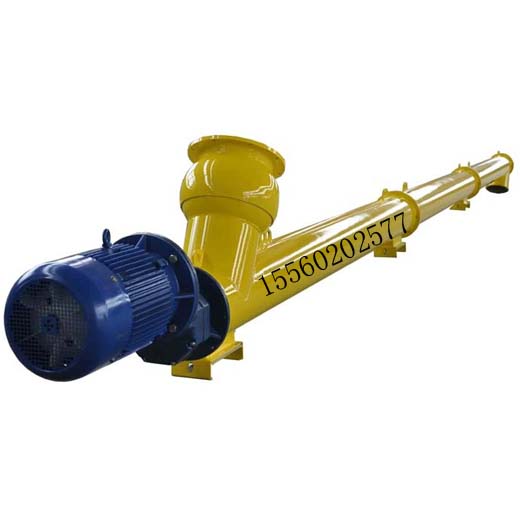

圆管式螺旋输送机（带万向节）
管式螺旋输送机（带卸料器）
管式螺旋输送机（带卸料器）

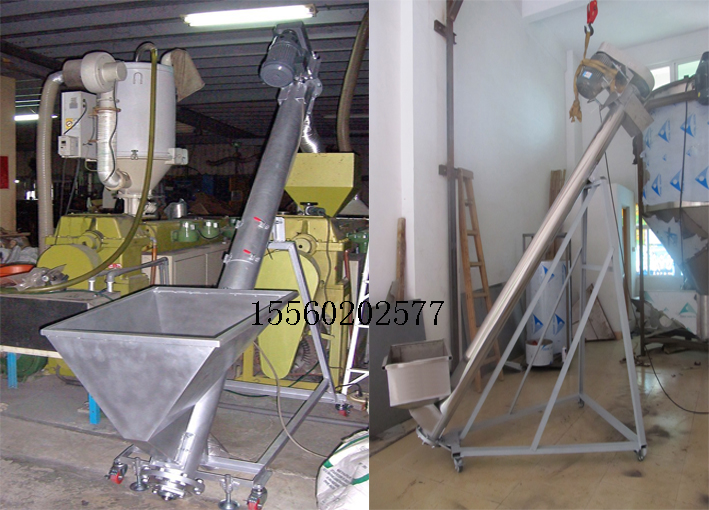

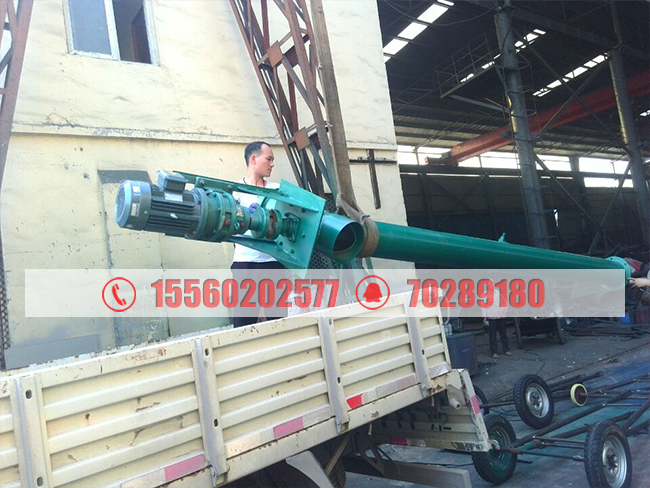

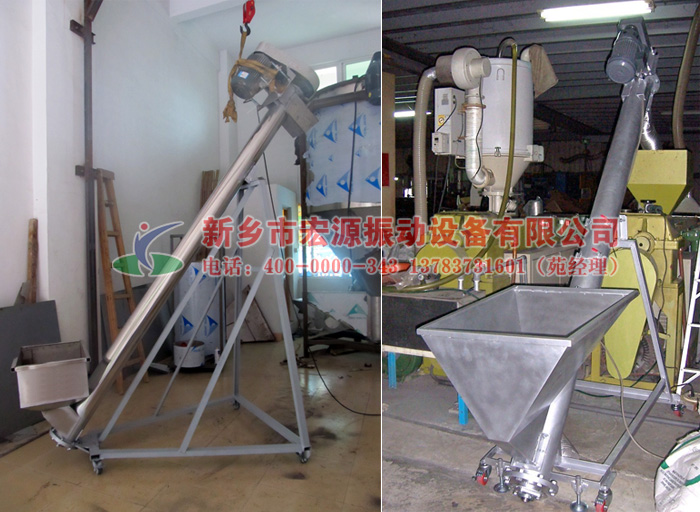

移动式螺旋输送机使用现场
Working site
GX型螺旋输送机技术参数：
Parameter：
Parameter：
| 规 格 | 主要技术性能 | 驱动装置 | 驱动装置 |
重量 （kg） |
||||
| 直径 |
长度 （m） |
产量 （水泥） t/h |
转速 min-1 |
减速机 | 电动机 | |||
| 型号 | 速比 | 型号 |
功率 （kw） |
|||||
| GX200 | -10 | 9 | 60 | JZQ250 | 23.34 | Y90S-4 | 1.1 | 726 |
| GX200 | -20 | 9 | 60 | JZQ250 | 23.34 | Y90L-4 | 1.5 | 1258 |
| GX250 | -10 | 15.6 | 60 | JZQ250 | 23.34 | Y100L2-4 | 2.2 | 960 |
| GX250 | -20 | 15.6 | 60 | JZQ250 | 23.34 | Y100L1-4 | 3 | 1750 |
| GX300 | -10 | 21.2 | 60 | JZQ350 | 23.34 | Y100L2-4 | 3 | 1373 |
| GX300 | -20 | 21.2 | 60 | JZQ350 | 23.34 | Y112M-4 | 4 | 2346 |
| GX400 | -10 | 51 | 60 | JZQ400 | 23.34 | Y132S-4 | 5.5 | 1911 |
| GX400 | -20 | 51 | 60 | JZQ500 | 23.34 | Y160M-4 | 11 | 2049 |
| GX500 | -10 | 87.5 | 60 | JZQ400 | 23.34 | Y132M-4 | 7.5 | 2381 |
| GX500 | -20 | 87.5 | 60 | JZQ650 | 23.34 | Y180M-4 | 18.5 | 5389 |
| GX600 | -10 | 134.2 | 45 | JZQ750 | 23.34 | Y180L-4 | 22 | 3880 |
| GX600 | -10 | 134.2 | 45 | JZQ850 | 23.34 | Y250M-4 | 55 | 7090 |
★我公司可根据用户需要设计制造特殊型号规格的螺旋输送机。
★我公司对所有技术资料、尺寸保留修改的权利，如实物与文中图案不符，应以实物为准。
★ My company can design and manufacture according to user needs special specifications of the screw conveyor.
★ For all my company reserves the right to modify technical data, size, such as material object does not accord with the design, the material shall prevail.
★我公司对所有技术资料、尺寸保留修改的权利，如实物与文中图案不符，应以实物为准。
★ My company can design and manufacture according to user needs special specifications of the screw conveyor.
★ For all my company reserves the right to modify technical data, size, such as material object does not accord with the design, the material shall prevail.
