移动式皮带输送机

DY系列可移动式皮带输送机产品概述

    DY型可移动式皮带输送机是一种工效高，使用安全可靠，机动性好的连续输送装卸设备。主要用于装卸地点经常变更动的场所，如：港口、码头、车站、煤场、仓库、建筑工地、沙石料场、农场等，用来短途运输及装卸散料或单件重量100公斤以下的成件物品。DY型可移动式皮带输送机分为可升降型及不可升降型两大类，输送带的运行靠电动滚筒驱动，整机的升降与运行均为非机动。

Product overview
   DY type portable belt conveyor is a kind of high efficiency, the use of safe and reliable, flexibility good continuous transportation loading and unloading equipment.Its mainly used for loading and unloading location constantly changing places, such as ports, docks, stations, coal yard, warehouse, construction site, sand yard, farm, etc., used to short-distance transport and loading and unloading bulk or single weight 100 kg of the following items.DY type portable belt conveyor to divided into two categories: type can lift and lift, the operation of the conveyor belt on electric drum drive, the rise and fall of the whole machine and operation are the non-motor vehicle.

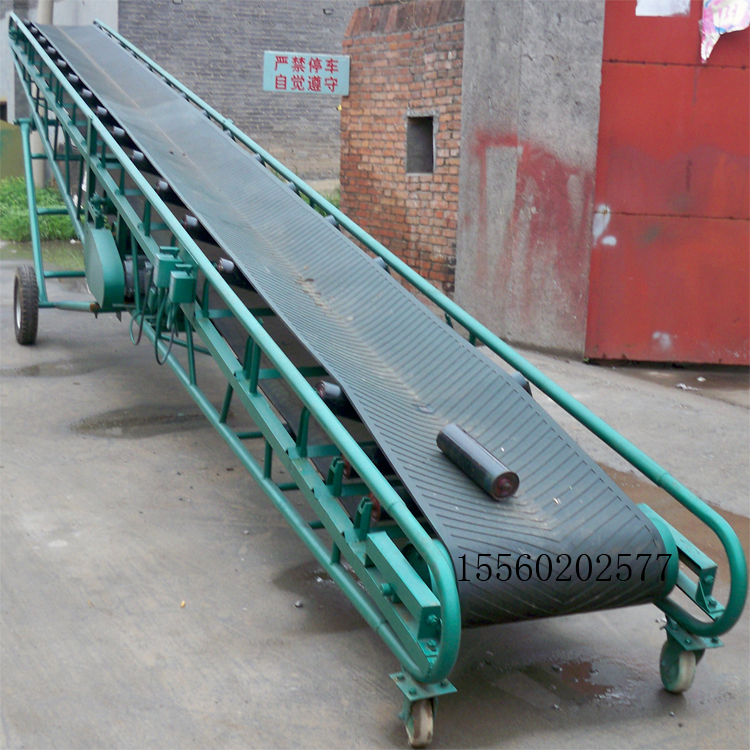

移动升降皮带输送机

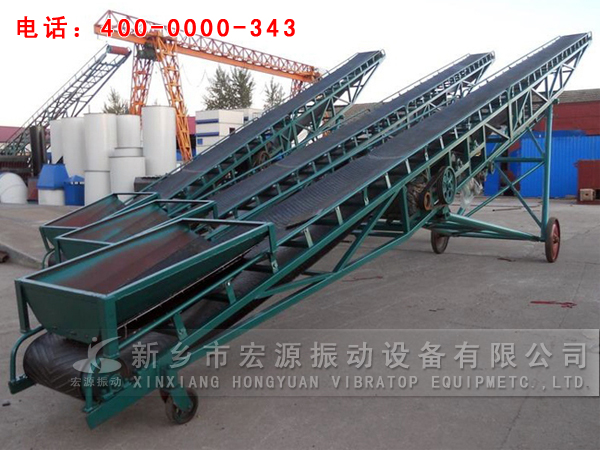

移动式皮带输送机，带导料槽

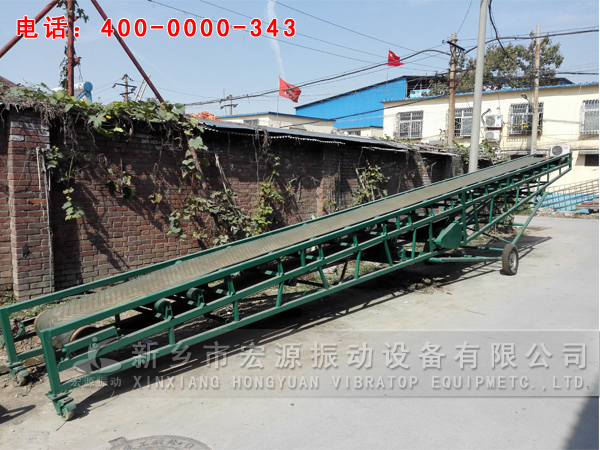

12米长移动升降皮带输送机

    DY型可移动式皮带输送机适用于散状物料或成件物品的短途运输和装卸工作。采用钢管结构，轻巧美观，机动性好。转动装置为电动滚筒，并配有充气轮胎和钢轮两种行走轮。机长10米以上倾角可调。

     DY type portable belt conveyor is suitable for the material or into a short-distance transport and loading and unloading of work items.Adopts steel structure, light and beautiful, good mobility.Rotating device for electric drum, and equipped with pneumatic tyre and steel wheel two walking wheels.Captain more than 10 meters Angle is adjustable.

    我公司可根据客户详情定制设，欢迎致电：13783731601，咨询详情！

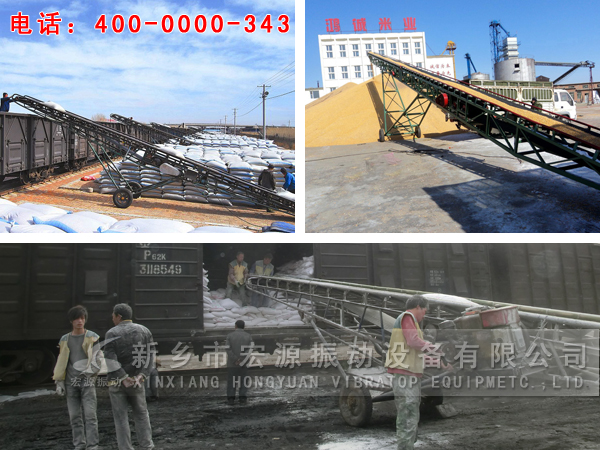

DY移动式皮带输送机现场图片

Working site

DY系列可移动皮带式输送机主要特点

    DY型移动式胶带输送机性能及主要技术参数与德国福兰德和蒂森公司的产品相当，主要特点是采用高精度，硬具面齿轮，其承载能力高，(比软具面具轮提高2-3倍)；寿命长(可达10年)；结构聚凑，占地面积小(可减少50%以上)；重时轻，体积小(可降低50%)；尤其是垂直传动结构形式，更适于煤矿井下矿山运输机械上使用。
Characteristic
    DY movable belt conveyor performance and main technical parameters and to Germany and thyssen company's products, main characteristic is to use high precision, hard with surface gears, its carrying capacity is high, higher than that of soft round with a mask (2-3 times);Life is long (up to 10 years);Gather together structure, cover an area of an area small, can reduce more than 50%);When weight is light, small volume (50% reduction);Especially vertical transmission structure form, more suitable for the coal mine mine transport machinery in use

DY系列可移动带式输送机技术参数表：

表一：
Table1：

表二：
Table2：

表三：
Table3：

订货须知:定货时需注明：带速、带宽、输送距离、输送量、倾斜角度、物料特性、工作环境、堆积角度等基本技术参数。
Ordering information: note the time of tape speed, bandwidth, transmission distance, throughput, oblique Angle, material characters, work environment, the basic technical parameters such as Angle of accumulation。

★我公司可根据用户需要而设计制造特殊型号规格的皮带式输送机。
★我公司对所有技术资料、尺寸保留修改的权利，如实物与文中图案不符，应以实物为准。
