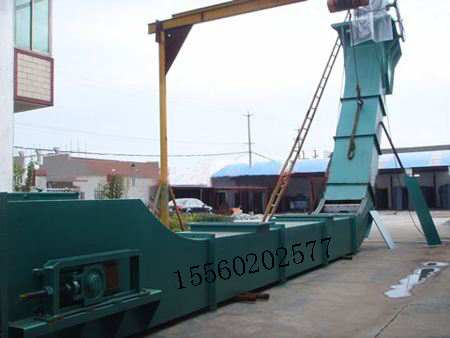

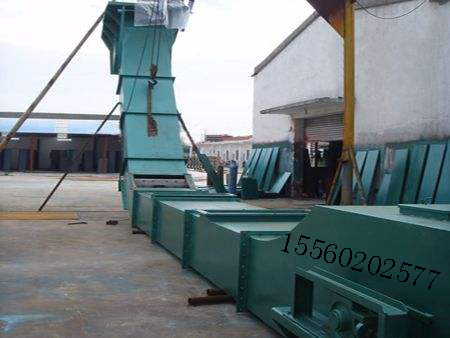

MS型埋刮板输送机工作原理:
埋刮板输送机在水平输送时,物料受到刮板链条在运动方向的压力及物料自身重量的作用,在物料间产生了内摩擦力。这种摩擦力保证了料层之间的稳定状态,并足以克服物料在机槽中移动而产生的外摩擦力,使物料形成连续整体的料流而被输送。
埋刮板输送机在垂直提升时,物料受到刮板链条在运动方向的压力,在物料中产生了横方向的侧面压力,形成了物料的内摩擦力。同时由于下水平段的不断给料,下部物料相继对上部物料产生推移力。这种摩擦力和推移力足以克服物料在机槽中移动而产生的外摩擦阻力和物料自身的重量,使物料形成了连续整体的料流而被提升。
Working principles
Buried scraper conveyor in horizontal transmission materials, and scraper chain in the direction of the pressure and material, its weight in the materials produced in the friction.This state friction force to ensure the stability of the material between layers, and enough to overcome the material move in machine groove and the external friction, make the material flow of the whole of the material to form continuous to be delivered.
Buried scraper conveyor in the vertical ascend, material scraper chain in the direction of the pressure, the pressure against the side of the material in the transverse direction, forming material in friction.At the same time because of the horizontal section of the continuous feeding, lower material successively passes on the upper material force.The friction force and force sufficient to overcome the material in a slot machine movement and the external friction resistance and the weight of the material itself, formed a continuous whole material flow of material and be promoted.
MS型埋刮板输送机主要特点:
我公司生产的机型为通用型埋刮板输送机,具有结构简单,重量较轻,体积小,密封性好,安装维修比较方便。它不但能水平输送也能倾斜和垂直输送;不但能单机输送,而且能组合布置,串接输送;能多点加料,也能多点卸料,工艺布置较为灵活。由于壳体封闭,在输送物料时可以显著改善工作条件,防止环境污染。
Features:
Our company production model for universal buried scraper conveyor, has simple structure, light in weight and small size, good sealing, convenient installation and maintenance.It can not only horizontal conveying can be inclined and vertical transmission;Not only can single machine transmission, and can combine to decorate, concatenated conveying;Can multipoint feeding, can also be a multipoint discharge, process arrangement is more flexible.Due to the closed shell, when conveying material can greatly improve the working conditions, prevent environmental pollution.
MS型埋刮板输送机注意事项
Notes
:
MS型埋刮板输送机技术参数:
Parameter:
通用型埋刮板输送机对所输送的物料有下列要求:
1、物料容重:γ=0.2~1.8t/m3;
2、物料温度:t<100°C;
3、含水率:对于一般物料,不得使物料用手捏成团后不易松散;对于含水率增加后会增大粘着性和压结性,不能使物料严重粘附刮板。
粒度:物料的粒度与其硬度有关,粒度太大,则不宜输送。对物料粒度的要求见下表:
Universal buried scraper conveyor for conveying the material has the following requirements:
1, material density, gamma = 0.2 ~ 1.8 t/m3;
2, the material temperature: t < 100 ° C;
3, the moisture content: for general materials, can not make the material after kneading dough by hand is not easy to loose;For moisture content will increase after increasing the viscosity and pressure, can't make serious adhesion material scraper.
Related to its hardness of granularity: material particle size, particle size is too big, is not conveying.For material particle size and demanded to see the table below:
通用型埋刮板输送机不适应输送高温的、有毒的、易爆易燃的、磨损性很强的、腐蚀性很强的、粘附性很强的、悬浮性很强的、流动性特好的、坚硬的和脆性很大又不希望被破碎的物料。
有这些特性的物料需要采用埋刮板输送机时,可设计为:耐高温型、耐腐蚀型、耐磨型、全气密型和防爆型等特殊机型,本公司可以生产。
水平型埋刮板输送机有普通型和大倾斜型之分,普通型的安装倾角0°≤α≤15°,大倾斜型的安装倾角为15°<α<30°。
Universal buried scraper conveyor is not fit for the transport of high temperature, toxic, explosive flammable, corrosive wear resistance strong, strong, strong adhesion, suspended sex strong, good liquidity, hard and brittle materials a lot and do not want to be broken.
Materials with these features requires a buried scraper conveyor, can be designed as: high temperature resistant, corrosion resistant, wear resistant, airtight and explosion-proof special models, such as the company can produce.

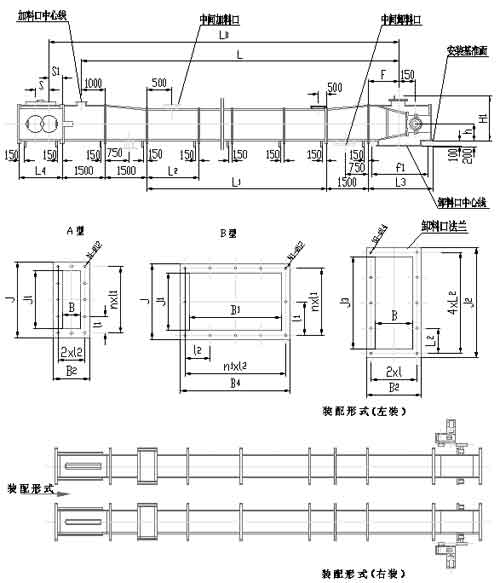

MS32、MS40型埋刮板输送机安装尺寸表(mm):
Installation dimension
埋刮板输送机在垂直提升时,物料受到刮板链条在运动方向的压力,在物料中产生了横方向的侧面压力,形成了物料的内摩擦力。同时由于下水平段的不断给料,下部物料相继对上部物料产生推移力。这种摩擦力和推移力足以克服物料在机槽中移动而产生的外摩擦阻力和物料自身的重量,使物料形成了连续整体的料流而被提升。
Working principles
Buried scraper conveyor in horizontal transmission materials, and scraper chain in the direction of the pressure and material, its weight in the materials produced in the friction.This state friction force to ensure the stability of the material between layers, and enough to overcome the material move in machine groove and the external friction, make the material flow of the whole of the material to form continuous to be delivered.
Buried scraper conveyor in the vertical ascend, material scraper chain in the direction of the pressure, the pressure against the side of the material in the transverse direction, forming material in friction.At the same time because of the horizontal section of the continuous feeding, lower material successively passes on the upper material force.The friction force and force sufficient to overcome the material in a slot machine movement and the external friction resistance and the weight of the material itself, formed a continuous whole material flow of material and be promoted.
MS型埋刮板输送机主要特点:
我公司生产的机型为通用型埋刮板输送机,具有结构简单,重量较轻,体积小,密封性好,安装维修比较方便。它不但能水平输送也能倾斜和垂直输送;不但能单机输送,而且能组合布置,串接输送;能多点加料,也能多点卸料,工艺布置较为灵活。由于壳体封闭,在输送物料时可以显著改善工作条件,防止环境污染。
Features:
Our company production model for universal buried scraper conveyor, has simple structure, light in weight and small size, good sealing, convenient installation and maintenance.It can not only horizontal conveying can be inclined and vertical transmission;Not only can single machine transmission, and can combine to decorate, concatenated conveying;Can multipoint feeding, can also be a multipoint discharge, process arrangement is more flexible.Due to the closed shell, when conveying material can greatly improve the working conditions, prevent environmental pollution.
MS型埋刮板输送机注意事项
Notes
:
MS型埋刮板输送机技术参数:
Parameter:
通用型埋刮板输送机对所输送的物料有下列要求:
1、物料容重:γ=0.2~1.8t/m3;
2、物料温度:t<100°C;
3、含水率:对于一般物料,不得使物料用手捏成团后不易松散;对于含水率增加后会增大粘着性和压结性,不能使物料严重粘附刮板。
粒度:物料的粒度与其硬度有关,粒度太大,则不宜输送。对物料粒度的要求见下表:
Universal buried scraper conveyor for conveying the material has the following requirements:
1, material density, gamma = 0.2 ~ 1.8 t/m3;
2, the material temperature: t < 100 ° C;
3, the moisture content: for general materials, can not make the material after kneading dough by hand is not easy to loose;For moisture content will increase after increasing the viscosity and pressure, can't make serious adhesion material scraper.
Related to its hardness of granularity: material particle size, particle size is too big, is not conveying.For material particle size and demanded to see the table below:
传动型式 | 功率范围(kw) | 备注 |
弹性联轴器直接传动 | 2.2~37 |
功率≤200kw时电压为380V 功率≥220kw时电压为6000V |
Y系列电机加液力偶合器 | 45~315 | |
电动滚筒直接传动 | 2.2~55 | |
绕线式电机 | 220~800 |
有这些特性的物料需要采用埋刮板输送机时,可设计为:耐高温型、耐腐蚀型、耐磨型、全气密型和防爆型等特殊机型,本公司可以生产。
水平型埋刮板输送机有普通型和大倾斜型之分,普通型的安装倾角0°≤α≤15°,大倾斜型的安装倾角为15°<α<30°。
Universal buried scraper conveyor is not fit for the transport of high temperature, toxic, explosive flammable, corrosive wear resistance strong, strong, strong adhesion, suspended sex strong, good liquidity, hard and brittle materials a lot and do not want to be broken.
Materials with these features requires a buried scraper conveyor, can be designed as: high temperature resistant, corrosion resistant, wear resistant, airtight and explosion-proof special models, such as the company can produce.
Horizontal buried scraper conveyer has a regular and large tilt, normal installation Angle 0 ° or less alpha 15 ° or less, big tilting type installation Angle is 15 ° < alpha < 30 °.
MS32、MS40型埋刮板输送机安装尺寸表(mm):
Installation dimension
型号 | B | B1 | B2 | B3 | B4 | b | c | d |
MS32 | 320 | 800 | 420 | 495 | 900 | 32 | 130 | 110 |
MS40 | 400 | 890 | 500 | 578 | 990 | 36 | 150 | 130 |
型 号 | H | H1 | H2 | J | J1 | L(m) | ||
MS32 | 572.5 | 723 | 820 | 670 | 570 | 6.65-78.15 | ||
MS40 | 612.5 | 763 | 860 | 800 | 700 | |||
型 号 | L0(m) | L1(m) | L2 | |||||
MS32 | 8.33-79.83 | 2-73.5 | 800,1500,2000 | |||||
MS40 | ||||||||
型 号 | l | nxl1 | l2 | N | N1 | t | ||
MS32 | 130 | 4x160 | 145 | 14 | 20 | 116.5 | ||
MS40 | 156 | 5x154 | 160 | 16 | 22 | 137.2 |
