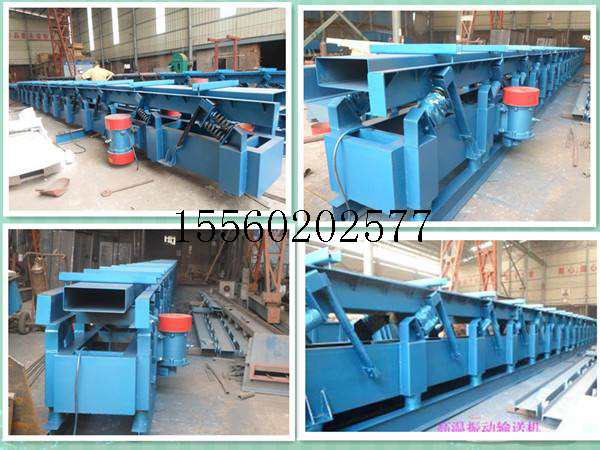

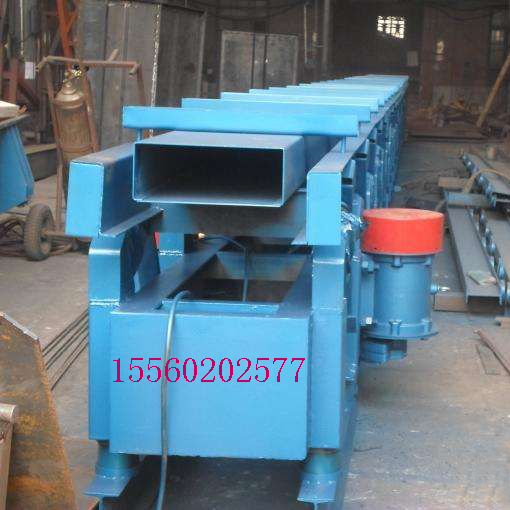

SCG系列耐高温水平振动输送机工作原理
SCG系列长距离振动输送机采用两台振动电机作为激振源，运用自同步原理，两台振动电机反向转动，使输送机底部平衡架产生往复振动，经过主振簧与导向板簧的作用，带动上部输送槽振动，从而达到输送物料的目的。
Working principles
SCG long vibration conveyor series adopts two vibration motor as vibration source, using the principle of self synchronous, two vibration motor reverse rotation, reciprocating vibration of the balance of the bottom of the conveyor frame after the reed and the role of the guide plate spring, drives the upper conveying groove vibration, so as to achieve the purpose of conveying material.
Working principles
SCG long vibration conveyor series adopts two vibration motor as vibration source, using the principle of self synchronous, two vibration motor reverse rotation, reciprocating vibration of the balance of the bottom of the conveyor frame after the reed and the role of the guide plate spring, drives the upper conveying groove vibration, so as to achieve the purpose of conveying material.
SCG型长距离振动输送机有敞开式、封闭式两种，料槽横截面可以做成圆形、矩形和梯形等多种型式。料槽的进料和出料也可根据需要制成一点进料、一点出料，一点进料、多点出料，多点进料、一点出料等多种型式。输送距离较长时可用多台输送机连接起来输送。SCG型长距离振动输送机料槽使用橡胶弹簧或钢簧支承，依靠固定在料槽上的两台振动电机的自同步运转，使料槽产生直线振动。
SCG long-type vibrating conveyor has open and closed types, chute cross section can make a circle, rectangle and trapezoid etc. Various type.Chute feed and discharge can be made into a feed according to need, selects a material, feed, more points expected, multipoint feeding and selects a material type.Longer transmission distance available connect more than one conveyor conveyor.SCG type long vibration conveyor rubber spring manger or steel spring bearing, relying on fixed on the feeding trough since the synchronous running of the two vibrating motors, the chute produce linear vibration.
SCG long-type vibrating conveyor has open and closed types, chute cross section can make a circle, rectangle and trapezoid etc. Various type.Chute feed and discharge can be made into a feed according to need, selects a material, feed, more points expected, multipoint feeding and selects a material type.Longer transmission distance available connect more than one conveyor conveyor.SCG type long vibration conveyor rubber spring manger or steel spring bearing, relying on fixed on the feeding trough since the synchronous running of the two vibrating motors, the chute produce linear vibration.

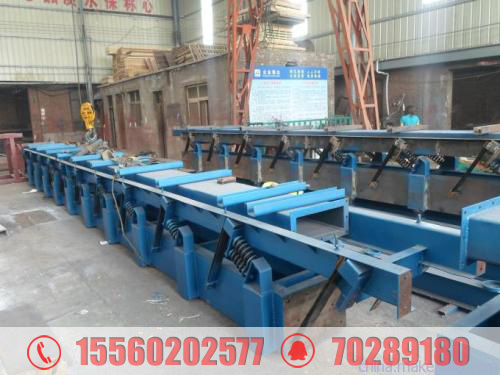

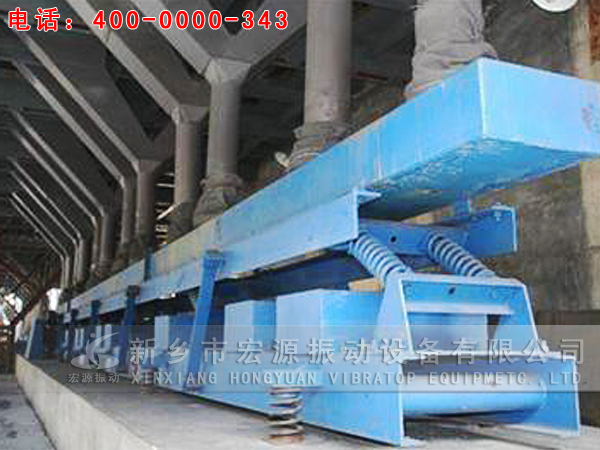

高温振动输送机使用现场
Working site
SCG系列耐高温水平振动输送机产品特点
1.可全封闭输送，消除粉尘污染，也可敞开输送；
2.输送量大、隔热效果好，不需冷却装置，耗电少；
3.结构简单、调试容易、易损件少、维修方便；
4.启动、停机迅速、运转平稳，隔振性能好、噪音小；
5.安装方便，不需专用地基及地脚螺栓，便于移动位置；
6.单机输送距离可达20米，多机软连接可随需要任意延长；
7.可以多点进、卸料，适宜于水泥熟料及矿渣库底、库顶输送。
Characteristic
1. Can be totally enclosed conveying, eliminate the dust pollution, also can open delivery;
2. Bue, good insulation effect, without cooling device, less consumption;
3. Simple structure, easy to debug, less wearing parts, maintenance is convenient;
4. Start and stop quickly, smooth operation, good performance of vibration isolation, noise is small;
5. Easy installation, without special foundation and anchor bolt, easy to move;
6. Single transmission distance of 20 meters, multimachine soft connection can follow need any longer;
7. Can be more inlet and discharge, suitable for cement clinker and slag bottom, top conveying library
2.输送量大、隔热效果好，不需冷却装置，耗电少；
3.结构简单、调试容易、易损件少、维修方便；
4.启动、停机迅速、运转平稳，隔振性能好、噪音小；
5.安装方便，不需专用地基及地脚螺栓，便于移动位置；
6.单机输送距离可达20米，多机软连接可随需要任意延长；
7.可以多点进、卸料，适宜于水泥熟料及矿渣库底、库顶输送。
Characteristic
1. Can be totally enclosed conveying, eliminate the dust pollution, also can open delivery;
2. Bue, good insulation effect, without cooling device, less consumption;
3. Simple structure, easy to debug, less wearing parts, maintenance is convenient;
4. Start and stop quickly, smooth operation, good performance of vibration isolation, noise is small;
5. Easy installation, without special foundation and anchor bolt, easy to move;
6. Single transmission distance of 20 meters, multimachine soft connection can follow need any longer;
7. Can be more inlet and discharge, suitable for cement clinker and slag bottom, top conveying library
SCG系列耐高温水平振动输送机使用范围
SCG型长距离高温物料振动输送机广泛适用于建材、治金、化工、采煤采矿、机械制造、煤炭、烟草、粮食、医药等行业。主要用于粉状、粒状、块状及其混合品等物料的输送。例如：水泥行业的原料、中间半成品及成品的输送，化工行业固体原料、半成品的输送,采掘行业矿石、精矿与尾矿的输送等作业上。
Applications
SCG type long and high temperature material vibration conveyor is widely used in building material, metallurgy, chemical industry, coal mining, machinery manufacturing, coal, tobacco, food, pharmaceutical and other industries.Is mainly used in powder, granular, block and its hybrids such as the material of conveyor.For example, the cement industry of raw materials, semi-finished products and finished products among transportation, chemical industry conveying of solid raw materials, semi-finished products, mining industry ore, concentrate and tailings transportation etc.
Applications
SCG type long and high temperature material vibration conveyor is widely used in building material, metallurgy, chemical industry, coal mining, machinery manufacturing, coal, tobacco, food, pharmaceutical and other industries.Is mainly used in powder, granular, block and its hybrids such as the material of conveyor.For example, the cement industry of raw materials, semi-finished products and finished products among transportation, chemical industry conveying of solid raw materials, semi-finished products, mining industry ore, concentrate and tailings transportation etc.
SCG系列耐高温水平振动输送机技术参数表
Parameter| 型号 | SCG300 | SCG400 | SCG600 | SCG800 |
| 单机输送距离（m） | 5-25 | 8-25 | ||
| 输送产量（T/H） | ≤15 | ≤25 | ≤40 | ≤60 |
| 电动功率（TW） | 3-7.5 | 5.5-15 | ||
| 设备每米重量（KG/M） | 300 | 500 | 700 | 800 |
| 物料性质 粒度（MM） |
0.5|
0.5 | | ||
| 物料性质 温度（℃） | <300 | |||
| 物料性质 含水量及粘性 | 含水量小于5%的非粘性、非易燃易爆物料 | |||
2.若输送其它物料时,可参照下列公式换算产量 Q=a*Q’Qλ/1.6 a-折减系数约为0.5∽1。粉状物料取小值,块装物料取大值。Q’-表中所示产量λ-输送物料的比重。
Note: 1. The transport production is medium weight is 1.6 t/m 3, determination of cement clinker temperature less than 300 ℃.
2. If transporting other materials can refer to the following company conversion output Q = a * Q Q 'lambda / 1.6 a - reduction factor of about 0.5 ∽ 1.Powder material of little value and of great value in block material.Q '- shown in the table lambda - the proportion of conveying material production.
2. If transporting other materials can refer to the following company conversion output Q = a * Q Q 'lambda / 1.6 a - reduction factor of about 0.5 ∽ 1.Powder material of little value and of great value in block material.Q '- shown in the table lambda - the proportion of conveying material production.
SCG系列耐高温水平振动输送机安装维护使用
1.基本要求：
(1)振动输送机的底架与槽体必须安装平直，建议其平直度在10米长度不大于5-8毫米，底架与槽体过大的挠曲会引起较大的安装应力，进而会引起这些机件的早期损坏。
(2)为了达到以上要求，隔振弹簧的下表面应该具有接近相同的标高，其允差不应大于5-8毫米。
(3)振动输送机的导向杆的安装角度应接近相同，剪切弹簧应与导向杆相垂直，其安装角度对其安装公称位置的允差为+-1。
(4)传动轴与槽体中心线垂直，两传动连杆应互相平行，不得有过大的歪斜，安装角度允差为+-1 ，传动轴安装后转动应灵活，用手能搬动360°以上。
(5)振动输送机所有螺钉应锁紧，一般应加弹簧垫圈，也可采用双螺母来锁紧。否则，螺栓很快松动，影响机器正常工作。
2.振动输送机的安装顺序：
(1)振动输送机的底架与槽体必须安装平直，建议其平直度在10米长度不大于5-8毫米，底架与槽体过大的挠曲会引起较大的安装应力，进而会引起这些机件的早期损坏。
(2)为了达到以上要求，隔振弹簧的下表面应该具有接近相同的标高，其允差不应大于5-8毫米。
(3)振动输送机的导向杆的安装角度应接近相同，剪切弹簧应与导向杆相垂直，其安装角度对其安装公称位置的允差为+-1。
(4)传动轴与槽体中心线垂直，两传动连杆应互相平行，不得有过大的歪斜，安装角度允差为+-1 ，传动轴安装后转动应灵活，用手能搬动360°以上。
(5)振动输送机所有螺钉应锁紧，一般应加弹簧垫圈，也可采用双螺母来锁紧。否则，螺栓很快松动，影响机器正常工作。
2.振动输送机的安装顺序：
(1)测定各隔振弹簧支撑点的标高，或在附近墙壁划上水平线。
(2)将底架垫起找平。
(3)将槽体支撑在底架上，并找平。
(4)在底架下面安装隔振弹簧及弹簧下座板。
(5)将导向杆与剪切橡胶弹簧焊接于或用螺钉固定于槽体和底架上。
(6)安装传动轴组件和电动机，焊接激振板。
(7)将机器落下，焊接给料口和排料口，安装密封套，固定好两端盖板。
Installation
1.Basic requirements:
The chassis and tub (1) vibration conveyor must be installed straight, suggest the straightness in 10 meters length is not more than 5-8 mm, base frame and the tub is too large deflection causes larger installation stress, which will cause the early damage of the part.
(2) in order to meet the above requirements, under the surface of vibration isolation spring should be close to the same level, the tolerance should not be greater than 5-8 mm.
The guide bar
(3) vibration conveyor installation Angle should be nearly the same, shear spring should be vertical, with the guide bar its installation Angle of the nominal position of the tolerance of + - 1.
(4) the vertical shaft and the center line of the tub, two connecting rod should be parallel to each other, can not have too big askew, installation Angle tolerance of + - 1, drive shaft rotation after installation should be flexible, with the hand can carry more than 360 °.
(5)All the screws vibration conveyor should lock, generally should add spring washer, also can use double nut for locking.Otherwise, bolt looseness soon, affect the machine to work properly.
2. Vibration conveyor installation order:
(1)Determine the support for vibration isolation spring, elevation, or in the near wall horizontal line.
(2) the chassis underlay leveling.
(3) the tub support on the chassis, and leveling.
(4) under the chassis to install under the vibration isolation spring and spring plate.
(5) the guide rod and shear rubber spring welding on or in the tub with screws and chassis.
(6) installation and motor shaft components, welding vibration plate.
(7) machine, welding feeding and discharging mouth mouth, seal set of installation, fixed on both ends of the cover plate.
(2)将底架垫起找平。
(3)将槽体支撑在底架上，并找平。
(4)在底架下面安装隔振弹簧及弹簧下座板。
(5)将导向杆与剪切橡胶弹簧焊接于或用螺钉固定于槽体和底架上。
(6)安装传动轴组件和电动机，焊接激振板。
(7)将机器落下，焊接给料口和排料口，安装密封套，固定好两端盖板。
Installation
1.Basic requirements:
The chassis and tub (1) vibration conveyor must be installed straight, suggest the straightness in 10 meters length is not more than 5-8 mm, base frame and the tub is too large deflection causes larger installation stress, which will cause the early damage of the part.
(2) in order to meet the above requirements, under the surface of vibration isolation spring should be close to the same level, the tolerance should not be greater than 5-8 mm.
The guide bar
(3) vibration conveyor installation Angle should be nearly the same, shear spring should be vertical, with the guide bar its installation Angle of the nominal position of the tolerance of + - 1.
(4) the vertical shaft and the center line of the tub, two connecting rod should be parallel to each other, can not have too big askew, installation Angle tolerance of + - 1, drive shaft rotation after installation should be flexible, with the hand can carry more than 360 °.
(5)All the screws vibration conveyor should lock, generally should add spring washer, also can use double nut for locking.Otherwise, bolt looseness soon, affect the machine to work properly.
2. Vibration conveyor installation order:
(1)Determine the support for vibration isolation spring, elevation, or in the near wall horizontal line.
(2) the chassis underlay leveling.
(3) the tub support on the chassis, and leveling.
(4) under the chassis to install under the vibration isolation spring and spring plate.
(5) the guide rod and shear rubber spring welding on or in the tub with screws and chassis.
(6) installation and motor shaft components, welding vibration plate.
(7) machine, welding feeding and discharging mouth mouth, seal set of installation, fixed on both ends of the cover plate.
SCG系列耐高温水平振动输送机检修注意事项
SCG系列长距离振动输送机检修的种类和内容；应分周检，月检，半年检，年检等几种，具体情况如下:
(1)周检：每周应检查连杆弹簧压紧螺母有无松动，压缩量是否适当，皮带有无紧张，配重块紧固如何，密封套有无破裂，漏灰等。
(2)月检：检查三角皮带有无损坏，剪切弹簧。隔振簧有无破裂，焊接处有无裂纹，传动轴有无足够的润滑油。
(3)半年检：仔细检查各部位焊缝，打开传轴，轴承盖，检查轴承的工作工作情况与磨损情况，检查橡胶弹簧有无老化和裂纹。
(4)年检：每年对传动部位进行一次检修，并更换损坏弹簧，检查槽体及料口磨损情况，必要时可进行局部更换或检修。
Notices for Maintenance
SCG series the kind and content of the long and vibration conveyor maintenance;Should be weekly, monthly, half yearly check, yearly check to wait for a few kinds, details are as follows:
Weekly inspection: (1) week should check whether there is any looseness on connecting rod spring compression nut, the amount of compression is appropriate, with or without belt tension counter weight fastening, gland presence of rupture, leakage ash, etc.
(2) month check: check the v belt is damaged, the shear spring.Vibration isolation spring have burst, welding crack, the drive shaft have enough oil.
(3) half yearly check: check the position of weld, open the transmission shaft, bearing cover, check the bearing working performance and wear, look for aging and cracking of rubber spring.
(4) yearly check: each year to a maintenance of transmission parts, and replace damaged spring, check the tub and abrasion of mouth, when necessary for partial replacement or repair.
(1)周检：每周应检查连杆弹簧压紧螺母有无松动，压缩量是否适当，皮带有无紧张，配重块紧固如何，密封套有无破裂，漏灰等。
(2)月检：检查三角皮带有无损坏，剪切弹簧。隔振簧有无破裂，焊接处有无裂纹，传动轴有无足够的润滑油。
(3)半年检：仔细检查各部位焊缝，打开传轴，轴承盖，检查轴承的工作工作情况与磨损情况，检查橡胶弹簧有无老化和裂纹。
(4)年检：每年对传动部位进行一次检修，并更换损坏弹簧，检查槽体及料口磨损情况，必要时可进行局部更换或检修。
Notices for Maintenance
SCG series the kind and content of the long and vibration conveyor maintenance;Should be weekly, monthly, half yearly check, yearly check to wait for a few kinds, details are as follows:
Weekly inspection: (1) week should check whether there is any looseness on connecting rod spring compression nut, the amount of compression is appropriate, with or without belt tension counter weight fastening, gland presence of rupture, leakage ash, etc.
(2) month check: check the v belt is damaged, the shear spring.Vibration isolation spring have burst, welding crack, the drive shaft have enough oil.
(3) half yearly check: check the position of weld, open the transmission shaft, bearing cover, check the bearing working performance and wear, look for aging and cracking of rubber spring.
(4) yearly check: each year to a maintenance of transmission parts, and replace damaged spring, check the tub and abrasion of mouth, when necessary for partial replacement or repair.
订货注意事项：
1.耐高温输送机不宜输送高粘度、高水分含量的物料及易燃、易爆物品；
2.若输送粉状物料或以粉状为主的混合物料时,产量将下降,下降幅度参考换算公式；
3.订货时需说明以下事项:a.物料种类及堆比重；b.物料粒度及含水量；c.输送产量；d.输送长度；e.若需中间进、卸料、则要注名进、卸料之间的距离,附简图；f.应注明设备的使用场所(如库顶、库底或立窑下等)。
Orders notes：
1. Should not be high temperature resistant conveyor transport high viscosity, high moisture content materials and inflammable, explosive;
2. If the conveying powder material or is given priority to with powder mixture of materials, production will drop, drop reference conversion formula;
3. When placing order, indicate the following: a. material type and bulk density;B. material particle size and water content;C. conveying production;D. conveying length;E. if need middle inlet and discharge, to note the distance between the inlet and discharge, enclosed diagram;Place of f. should indicate the use of the equipment (such as library top, bottom, or the lower jet).
1.耐高温输送机不宜输送高粘度、高水分含量的物料及易燃、易爆物品；
2.若输送粉状物料或以粉状为主的混合物料时,产量将下降,下降幅度参考换算公式；
3.订货时需说明以下事项:a.物料种类及堆比重；b.物料粒度及含水量；c.输送产量；d.输送长度；e.若需中间进、卸料、则要注名进、卸料之间的距离,附简图；f.应注明设备的使用场所(如库顶、库底或立窑下等)。
Orders notes：
1. Should not be high temperature resistant conveyor transport high viscosity, high moisture content materials and inflammable, explosive;
2. If the conveying powder material or is given priority to with powder mixture of materials, production will drop, drop reference conversion formula;
3. When placing order, indicate the following: a. material type and bulk density;B. material particle size and water content;C. conveying production;D. conveying length;E. if need middle inlet and discharge, to note the distance between the inlet and discharge, enclosed diagram;Place of f. should indicate the use of the equipment (such as library top, bottom, or the lower jet).
